什么是LED光电玻璃

What is the LED photoelectric glass?

Lighttech LED photoelectric glass not only maintains the ultra-high permeability of glass, but shows the photoelectric display effect by control, so as to realize the video playing. At present, the products and process technologies have applied for multiple invention patents and utility model patents.

Features:

High permeability

The permeability rate and light transmittance rate of photoelectric glass reach 99% and 80%, respectively, and it does not affect the sight and daylighting;
High stability

It adopts the control mode of lamp-driver separation, which greatly improves the service life of LED lamp bead and stability of photoelectric glass with the low maintenance cost.
Convenient installation mode

It does not damage the building structure and perfectly fits the building structure. Its installation method is consistent with the common glass curtain wall, and can replace the glass curtain wall.

LED photoelectric glass

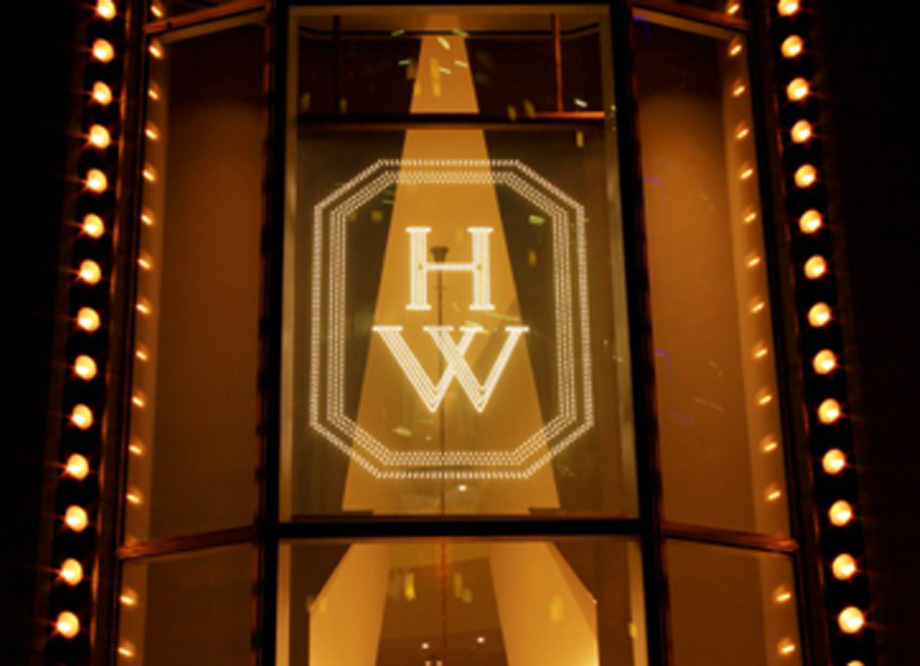

Monochrome static

It is the customized product and suitable for unchanged LOGO or figure. In the early stage of design, the pattern is outlined on the LED photoelectric glass. When it is turned on, it shows the designed pattern, otherwise, it is the permeable glass. The pattern is unchanged and it is static when displayed.

Product parameter

Basic product parameters
LED quantity (ea/m2)
Maximum: 10000
Size (mm)
Minimum: 300*300
Maximum: 2400*3500
LED space(mm)
Minimum: 10mm

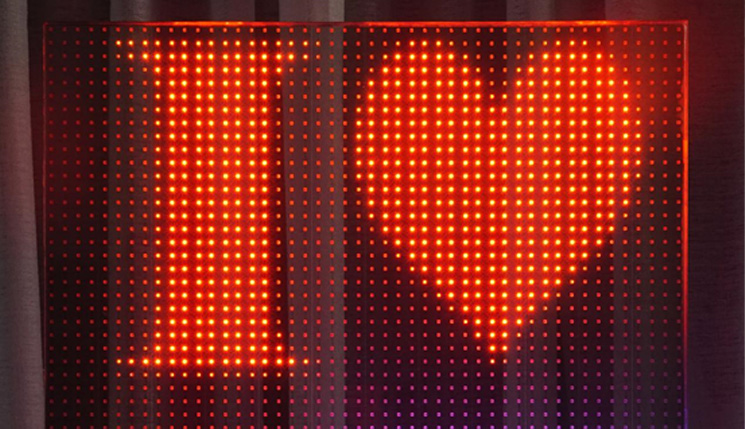

Monochrome dynamic

Wider application range. Applicable to handrail elevator, show window and entrance and exit of subway station, etc. Change the displayed pattern at will, show the dynamic picture. Only one color can be displayed on the same picture, and the black part is displayed with glass background.

Product parameter

Pixel structure/LED	Monochrome	Monochrome
Pixel pitch (mm)	40	30
LED quantity (per square meter)	576	1024
Pixel Density (dots/m2)	24*24	32*32
Glass size(mm)	Maximum: 2400*3600	Maximum: 1810*3600
Glass size(mm)	Minimum: 500*500	Minimum: 500*500
Thickness (mm)	Above 10	Above 10
Glass weight (Kg/m2)	Above 20	Above 20

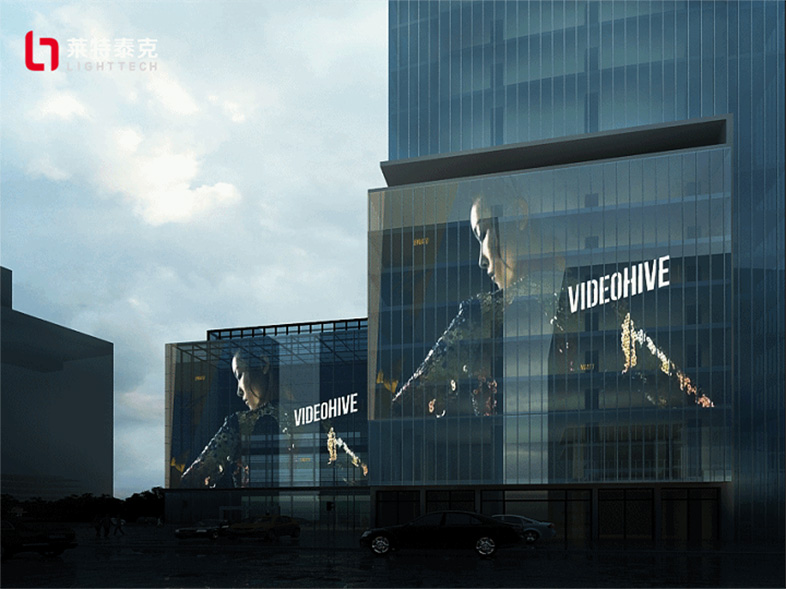

Full-color dynamic

Adopting RGB three-in-one lamp, realize the change of 16.77 million colors, full-color video playing function. Building glass curtain wall, display screen, LED lamp integration. It is a new-type outdoor media transmission carrier. 99% permeability rate, 80% light transmittance. Energy-saving, environmental and beautiful.

Product parameter

Pixel structure/LED	Colorful RGB three-in-one	Colorful RGB three-in-one	Colorful RGB three-in-one
Pixel pitch (mm)	50	40	30
LED quantity (per square meter)	400	576	1024
Pixel Density (dots/m2)	20*20	24*24	32*32
Glass size(mm)	Maximum:1635*3600	Maximum:1371*3600	Maximum:975*3600
Glass size(mm)	Minimum:500*500	Minimum:500*500	Minimum:500*500
Thickness (mm)	Above 10	Above 10	Above 10
Glass weight (Kg/m2)	Above 20	Above 20	Above 20

LED transparent screen

Lamp-driver integration mode is adopted to integrate the driving IC into LED;
High brightness: Point-to-point integrated control mode is adopted to greatly increase thee LED brightness;
Small-sized screen appearance: It reduces the reserved space for external control, and builds the control in the screen body;
Exquisite picture: After realizing the lamp-driver integration control, LED transparent screen can realize the small-spacing display, increase the overall rendering resolution and enhance the picture quality.
